Model

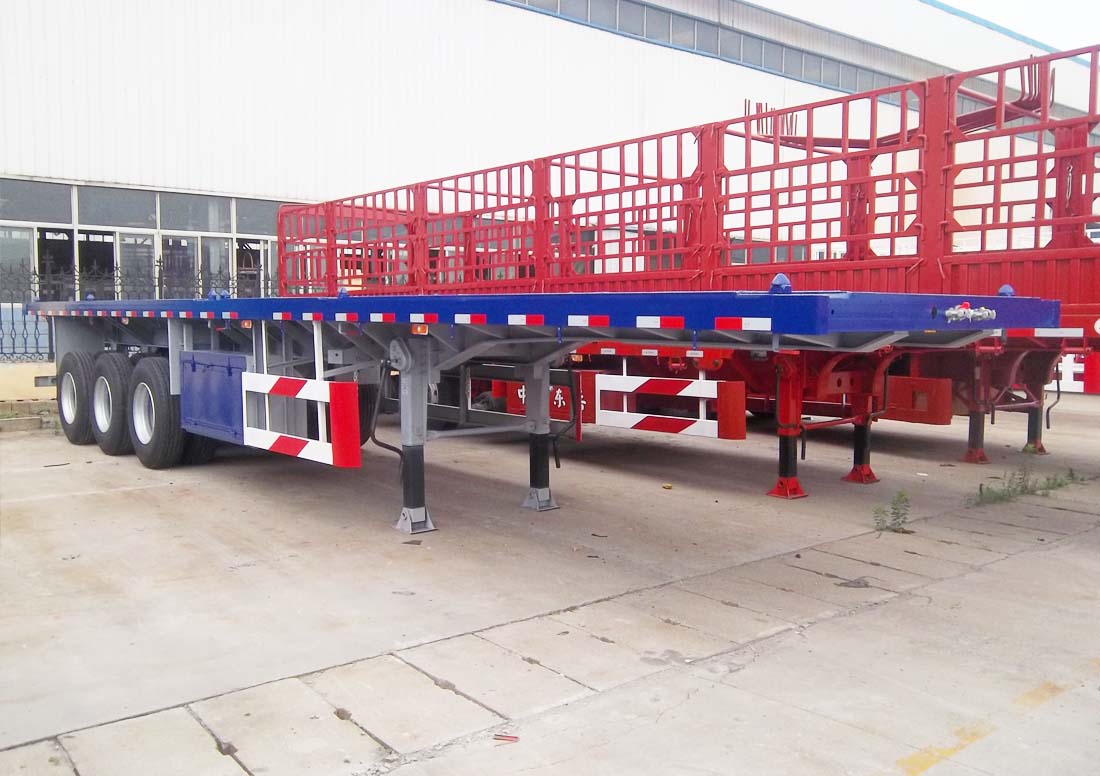

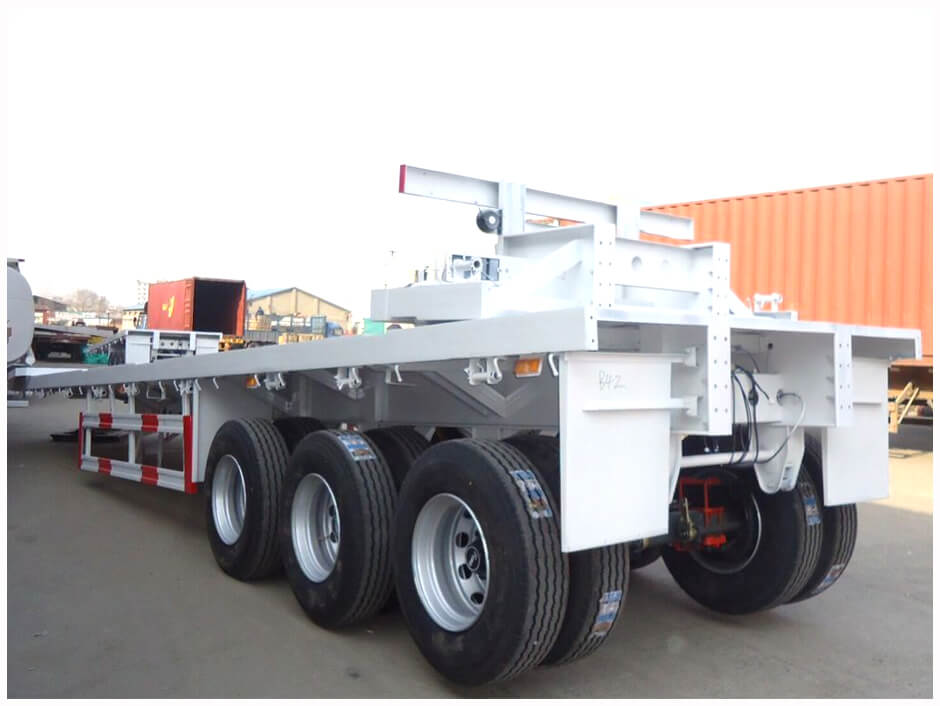

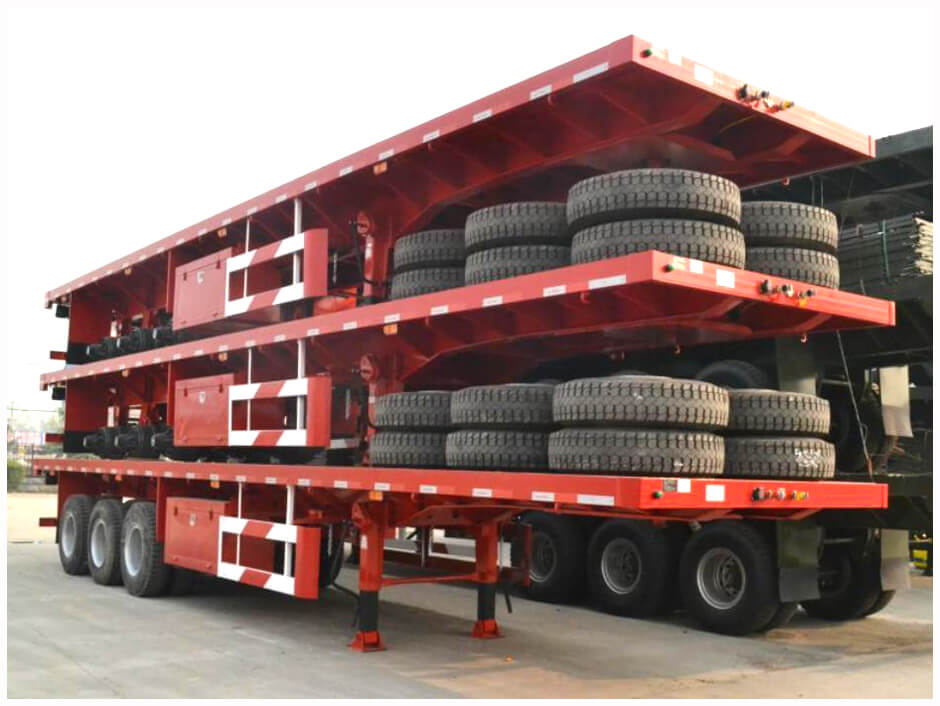

sinotruk howo Flat bed Container Semi Trailer

Dimension

12500 x 2500 x 1620mm

Curb Weight

7.5Tons

Loading Capacity

60 Tons

Twist Lock

12sets, suitable to accept 1x20,2x20,1x40 container; Manual operation

Platform

3mm thick checkered plate

Kingpin

JOST 2.0 / 3.5 Inch

Landing Gear

JOST 28 Tons

Main Beam

Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm

Side Beam

16mm steel channel

Suspension

America type mechanical suspension

Spring Leaf

90mm x 13mm x 10 layers

Axles

FUWA Brand, 13Tons

Tires

12.00R20 or 315/80R22.5

Brake Chamber

T30/30 + T30 spring brake chamber, one piece of 45L air tanks

Electrical

24V

Tool Box

1000 x 500 x 500 mm
