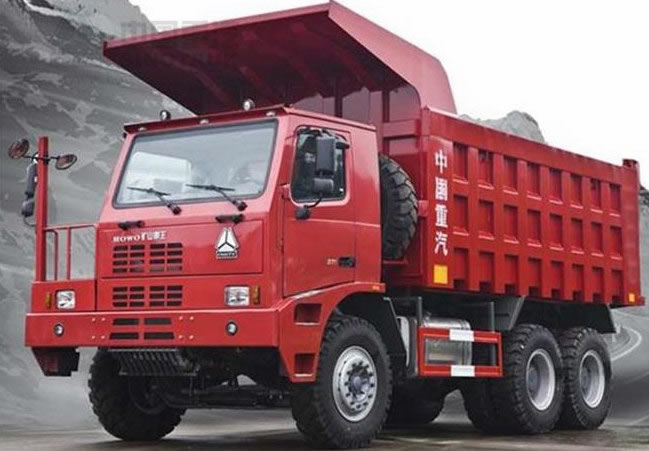

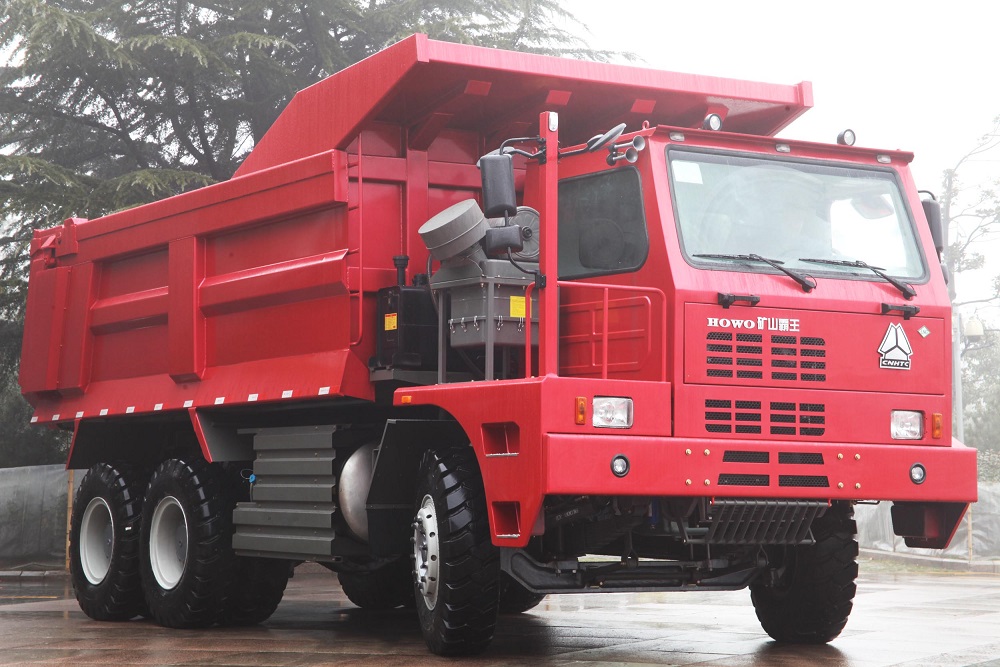

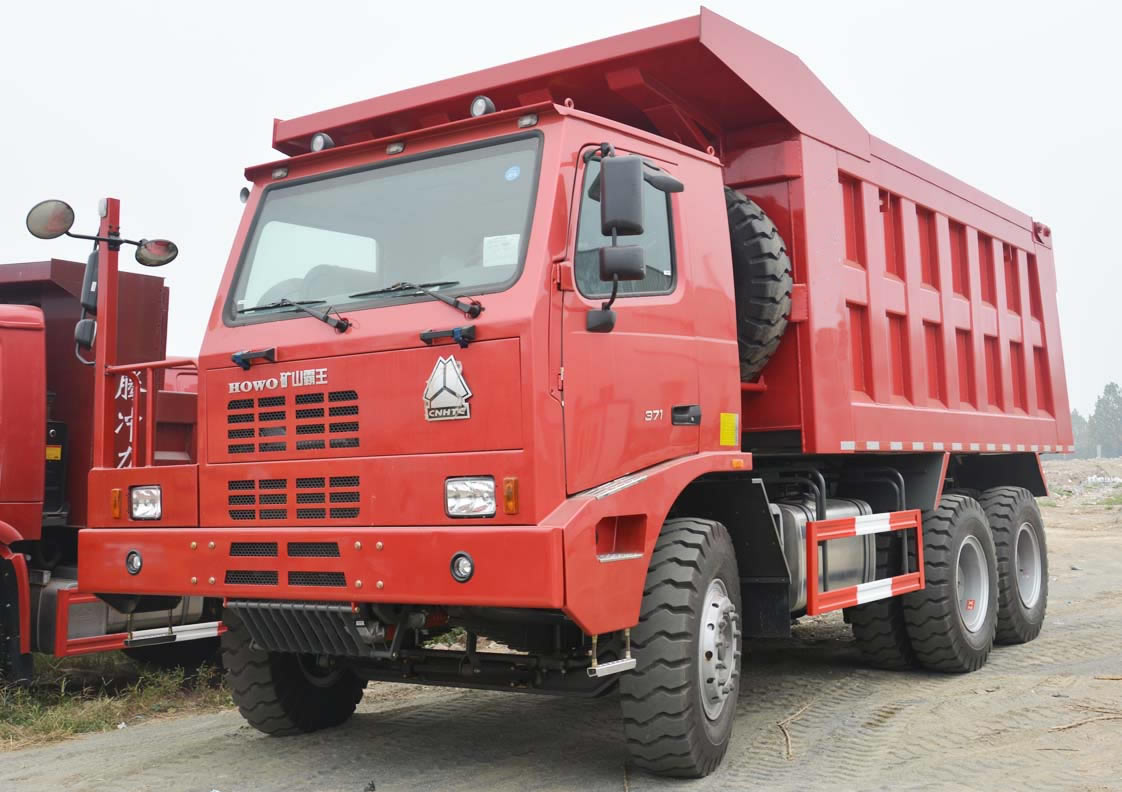

Howo Mining King Dump Truck

Driving Type:6x4 / 10 Wheels / 3 Axles

Horse Power:371HP /420HP

Transmission:HW21712, 12F & 2R

Rear Axle:AC26, 2x26000 KGS

Tel:0086-531-87566188

Download BrochurePrint
  • Professional Service, Competitive Price.
  • Powerful Engine, Advanced Technologies.
  • Stable and Reliable Quality, Great Performance.

Chassis Model

ZZ5707S3840AJ,ZZ5707S4040AJ,ZZ5707S4840AJ,ZZ5707V3640CJ,ZZ5707V3840CJ,ZZ5707V4040CJ,ZZ5707V4840CJ

Driving Type

6X4

Cabin

HW7D cab, without sleeper and  two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorbe

Engine

Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47T2,  371 HP ;D12.42T2,420;
Emission :Euro 2
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L

Transmission

HW21712, 12F & 2R, with PTO

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF12,1x12000 KGS

Steering with doubleT-cross section beam

Rear Axle

AC26, 2x26000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:10.47,8.51

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Front suspension: 1500mm,Half the elliptical leaf spring with shock absorber cavitation
Rear suspension: 1000mm, The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

14.00-25, radial tyres with one spare tyre

Fuel Tank

500L

Cargo Body

Length:5.8M,6.3M,6.8M,7.6M;Width:3.1M;Height:1.2-2M

Overall Dimension

9045*3200*3770 mm
